GH32標準型減速電機型號大全附尺寸圖

GH32臥式斜齒輪減速機型號：CH32-400W-100SB、CH32-400W-120SB、CH32-400W-140SB、CH32-400W-160SB、CH32-400W-180SB

CH32-400W-200SB

CH32-750W-30SB、CH32-750W-40SB、CH32-750W-50SB、CH32-750W-60SB、CH32-750W-70SB、CH32-750W-80SB、CH32-750W-90SB、CH32-750W-100SB、CH32-750W-120SB、CH32-750W-140SB、CH32-750W-150SB

CH32-1.5KW-3SB、CH32-1.5KW-5SB、CH32-1.5KW-10SB、CH32-1.5KW-15SB、CH32-1.5KW-20SB、CH32-1.5KW-30SB

CH32減速機匹配電機功率：400W 750W 1.5KW

電機電壓：可直流  可交流 根據實際的使用場景進行選擇

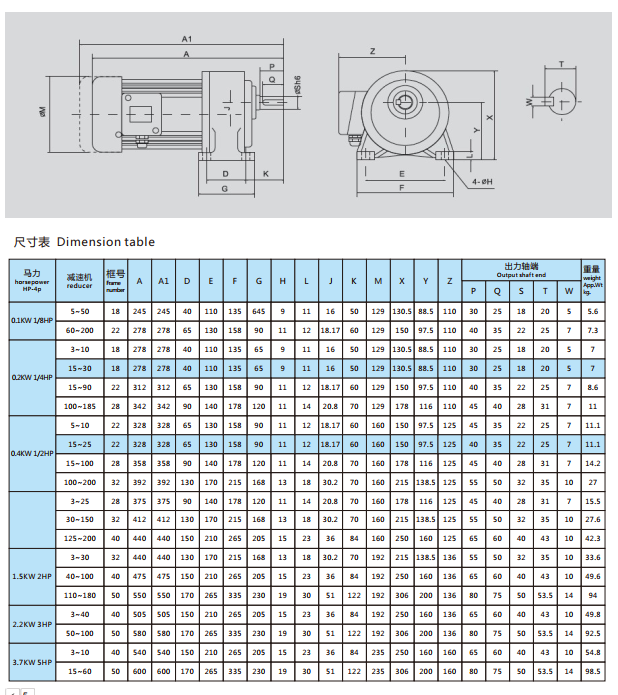

下面是CH32減速機的安裝尺寸圖，需要高清尺寸圖請聯系客服

CH32減速機：http://www.phpx.com.cn/products/212.html
